How much height does each repair caster add?
The stated installation height is approximately 1 inch.
The measurement
1 in installed height
0.9 in fixed wheel · 30 lb each · 4 pack
0.9-inch low-profile fixed repair casters, 4 pack
1 in installed height
$9.99
0.9 in fixed wheel · 30 lb each · 4 pack
- Wheel diameter0.9 in
- Wheel width0.7 in
- Installation height1 in
- Bracket size2.95 × 0.9 in
Ships from a US warehouse in 4 days. Shipping to the United States is included. Shipping details.

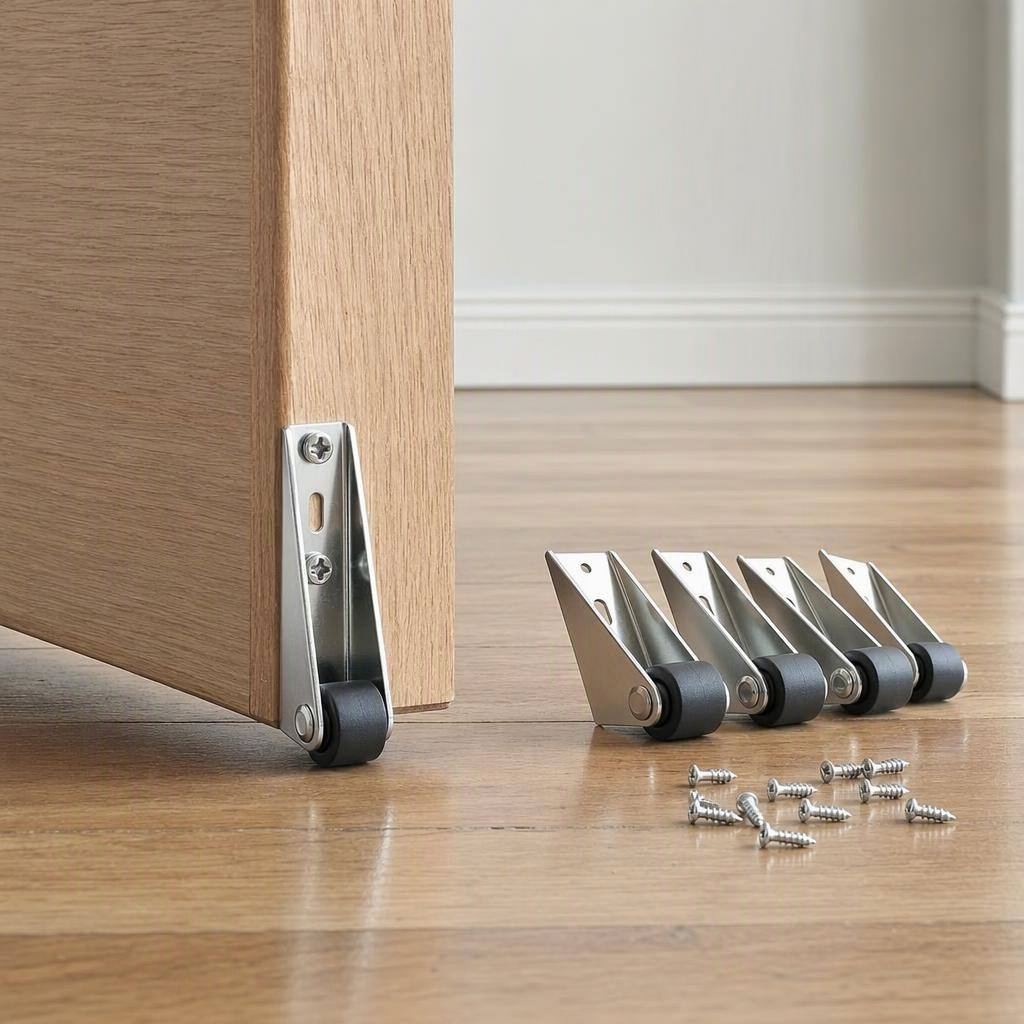

Four YORMTOIR LZ000 low-profile fixed casters for supporting a sagging wooden door or lightweight cabinet, drawer unit, coffee table, or under-bed bin without adding the height of a conventional caster. Each rigid nylon wheel is 0.9 inch in diameter, installs about 1 inch high, and supports up to 30 pounds.
The fit
1 in installed height
- Wheel diameter0.9 in
- Wheel width0.7 in
- Installation height1 in
- Bracket size2.95 × 0.9 in
- Mounting-hole spacing1.26 × 0.33 in
- Load per caster30 lb
- Caster motionRigid fixed direction; does not swivel
Illustration based on the product photo. Use the measurements written on this page.

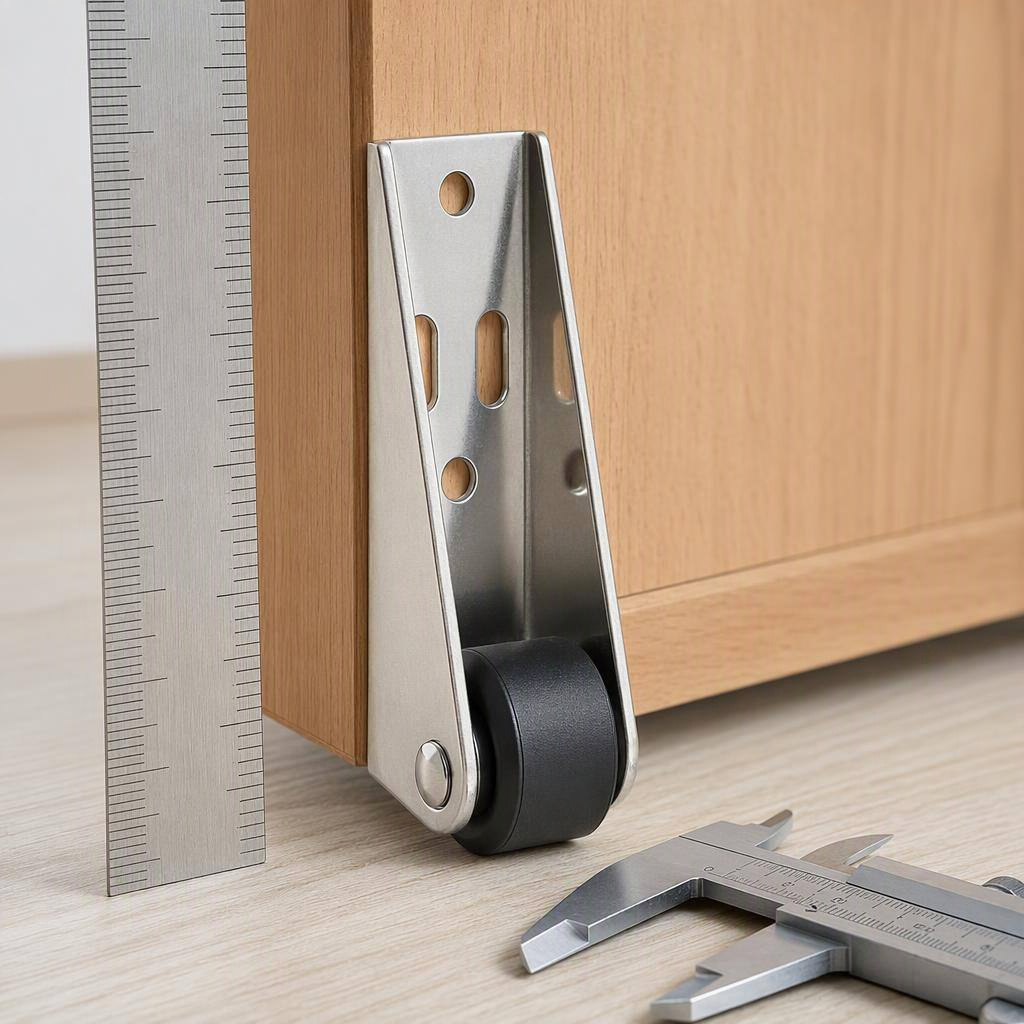

Measurements
0.9-inch low-profile fixed repair casters, 4 pack is listed for 0.9 in fixed wheel · 30 lb each · 4 pack. Compare every deciding measurement below with your space before ordering.
| Wheel diameter | 0.9 in |
|---|---|
| Wheel width | 0.7 in |
| Installation height | 1 in |
| Bracket size | 2.95 × 0.9 in |
| Mounting-hole spacing | 1.26 × 0.33 in |
| Load per caster | 30 lb |
| Caster motion | Rigid fixed direction; does not swivel |
| Mounting-hole diameter | 0.157 in |
| Maximum set load | 120 lb |
| Mounting positions | Side, vertical or bottom |
| Material | Nylon wheel and steel bracket |
| Included | 4 casters and 16 screws |
| Not for | Carpet, uneven floors, outdoor use, water exposure, or loads over 120 lb per set |
Product photos
Shipping and returns
Ships from a US warehouse in 4 days. Shipping to the United States is included.
You can return an unused item within 30 days of delivery. You pay the return postage. If the item arrives damaged, or it is a different measurement than the product page states, write to support@utiliy.com and Utiliy pays the return.
Fitment answers
Will these wheels swivel?
No. They are rigid, one-direction fixed casters intended to support movement along a straight path.
Can these support a sagging bedroom door?
Yes, when the door construction accepts the bracket and the load at the wheel does not exceed 30 pounds. Confirm floor clearance through the full swing.
Can I install the casters on the side of furniture?
Yes. The supplied bracket can be mounted on a side, vertically, or on the bottom when the structure provides solid screw support.
Do these work on carpet?
No. They are specified for smooth, even indoor flooring rather than carpet or uneven surfaces.
