Does the package contain one hinge or a pair?
It contains one left mechanism and one right mechanism, plus 20 M5 mounting screws.
The measurement
150 N · 9.52 in lift
left + right pair · 125° · 100 lb conservative load
150 N lift-top table hinge pair, 9.52-inch rise
150 N · 9.52 in lift
$25.99
left + right pair · 125° · 100 lb conservative load
- Support force150 N
- Lift height9.52 in
- Opening angle125 degrees
- Conservative supported load100 lb
Ships from a US warehouse in 6 days. Shipping to the United States is included. Shipping details.

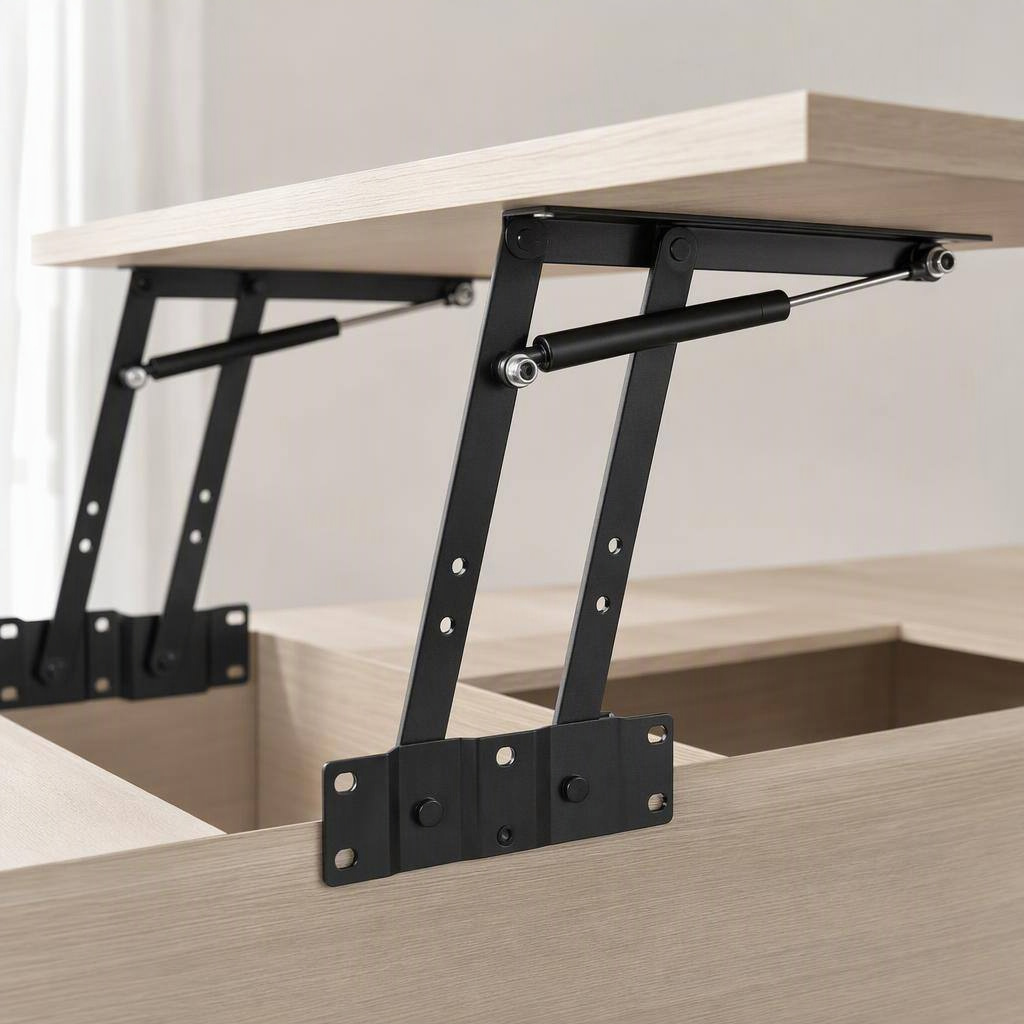

One left-and-right pair of KEILEOHO gas-supported lift-top table hinges for a coffee table, storage top, desk, or cabinet project. The mechanism provides a 9.52-inch rise, uses 150 N supports, and opens to approximately 125 degrees. Treat 100 pounds as the conservative supported-load claim and verify the folded envelope, mounting structure, and screw depth before installation.
The fit
150 N · 9.52 in lift
- Support force150 N
- Lift height9.52 in
- Opening angle125 degrees
- Conservative supported load100 lb
- Mechanism size9.5 × 7 in

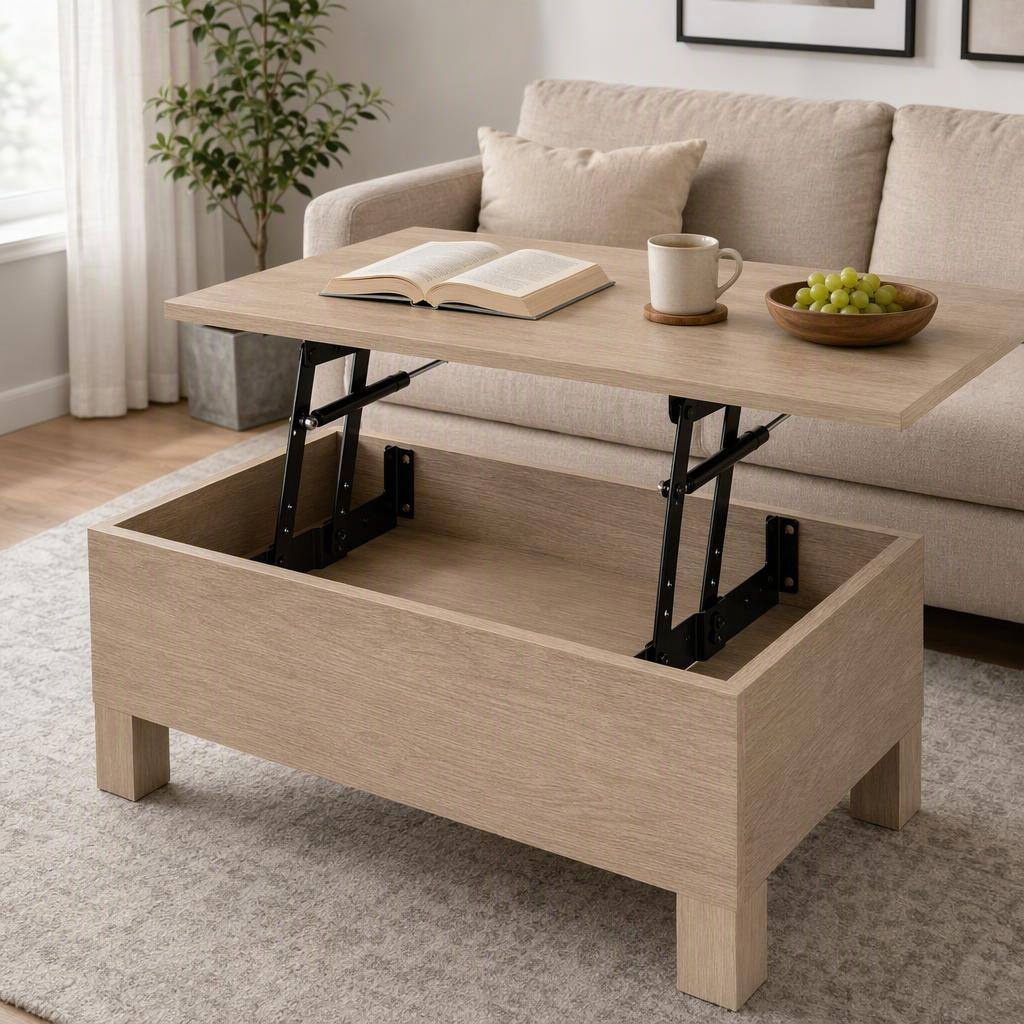

Illustration based on the product photo. Use the measurements written on this page.
Measurements
150 N lift-top table hinge pair, 9.52-inch rise is listed for left + right pair · 125° · 100 lb conservative load. Compare every deciding measurement below with your space before ordering.
| Support force | 150 N |
|---|---|
| Lift height | 9.52 in |
| Opening angle | 125 degrees |
| Conservative supported load | 100 lb |
| Mechanism size | 9.5 × 7 in |
| Lift height in metric | 242 mm |
| Steel section thicknesses | 2.5 and 4 mm |
| Mounting holes | 18 |
| Mounting screws | 20 M5 screws included |
| Pack quantity | 2 mechanisms: one left and one right |
| Material | Heavy-duty black steel |
| Not for | Single-side installation, unsupported particleboard edges, or applications requiring an unconditional 220 lb rating |

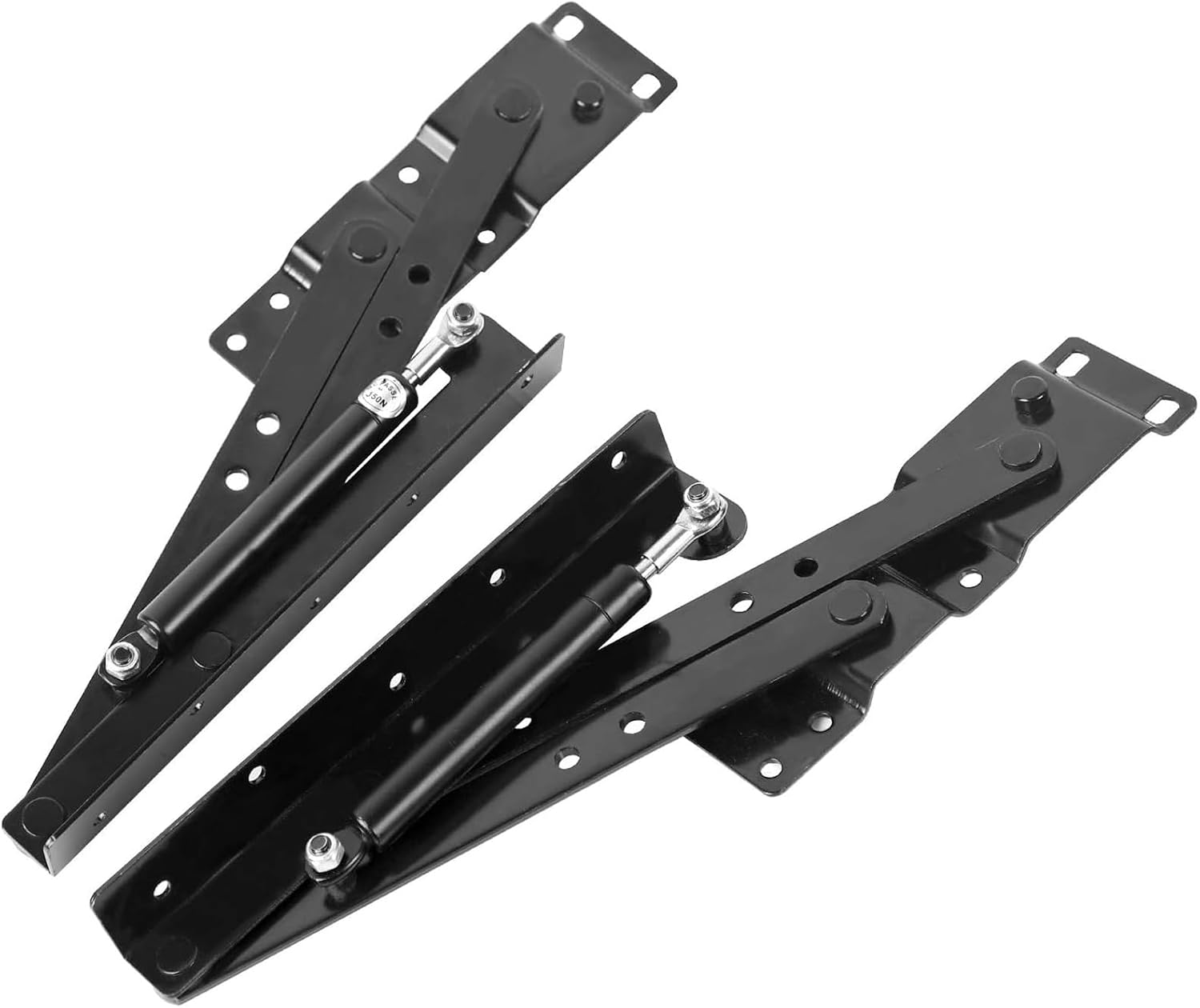

Product photos
Shipping and returns
Ships from a US warehouse in 6 days. Shipping to the United States is included.
You can return an unused item within 30 days of delivery. You pay the return postage. If the item arrives damaged, or it is a different measurement than the product page states, write to support@utiliy.com and Utiliy pays the return.
Fitment answers
How high does the tabletop rise?
The stated lift height is 9.52 inches, or 242 millimeters.
What force are the gas supports?
The supplied mechanism is specified at 150 N.
Can the pair safely support 220 pounds?
Do not publish or design around 220 pounds as an unconditional rating. The source contains conflicting load language, so this draft uses 100 pounds as the conservative supported-load claim.
What should I measure before installation?
Check the 9.5 × 7 inch mechanism envelope, 9.52-inch travel path, closed clearance, panel thickness, framing strength, and safe screw penetration.
Can I install only one side?
No. This product is prepared as a matched left-and-right pair for balanced support.
