What bolt pattern do these 4-inch casters use?
The four slotted mounting holes have 74 × 45 mm center spacing on a 94 × 64 mm plate.
The measurement
74 × 45 mm bolt pattern
4 in wheel · 5.11 in installed · 350 lb each

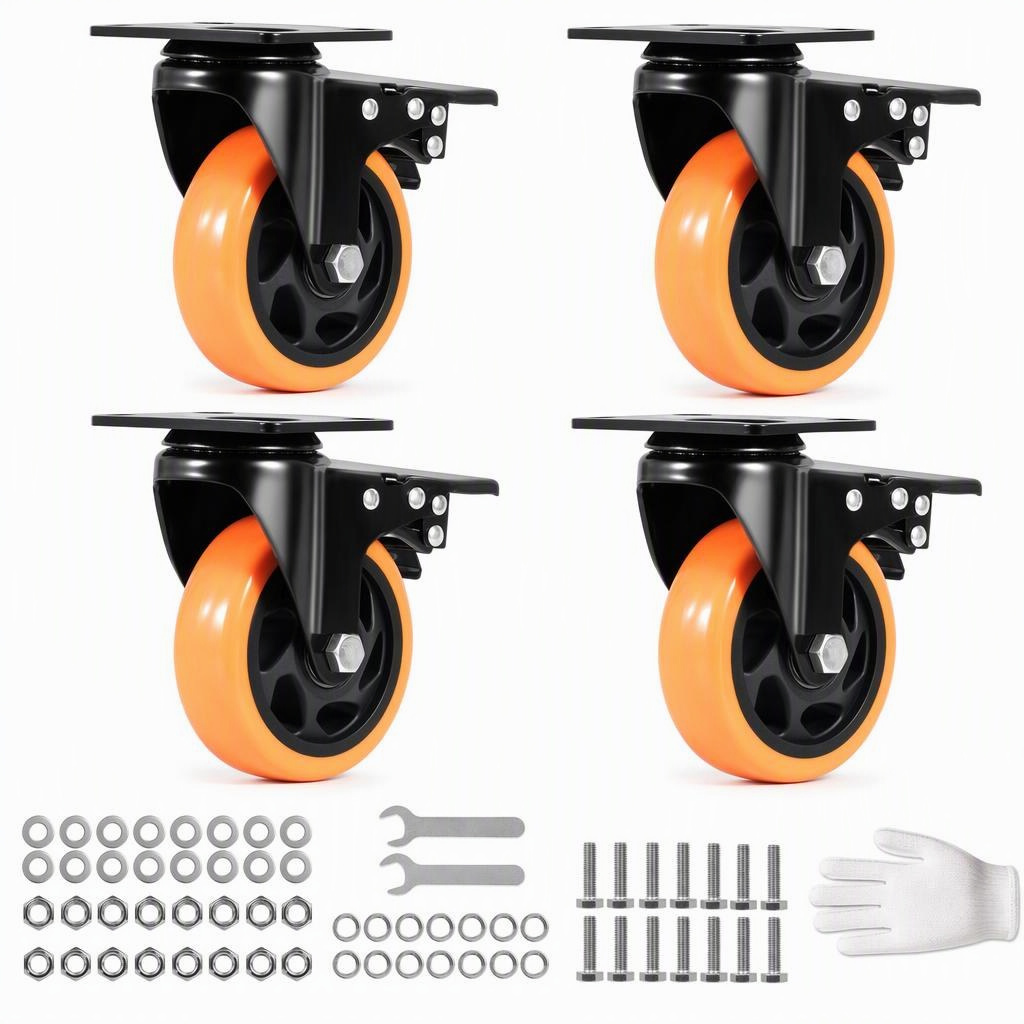

4-inch locking plate casters, 74 × 45 mm holes, 4 pack
74 × 45 mm bolt pattern
$28.99
4 in wheel · 5.11 in installed · 350 lb each
- Mounting plate94 × 64 mm
- Bolt-hole centers74 × 45 mm
- Mounting holes4 slotted holes, 9 mm
- Wheel diameter4 in
Ships from a US warehouse in 6 to 8 days. Shipping to the United States is included. Shipping details.

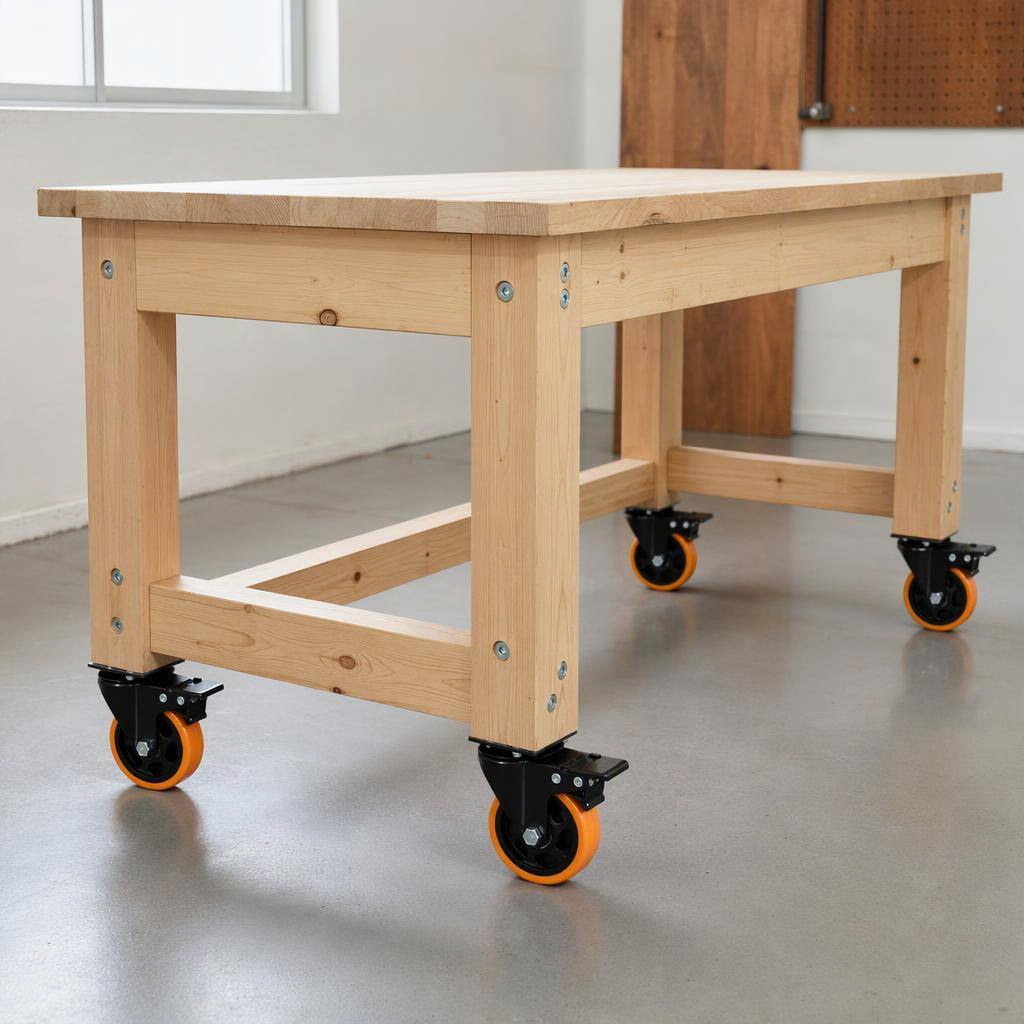

Four VEVOR CC-PBJL-4 locking swivel plate casters for furniture, carts, cabinets, and workbenches whose mounting surface accepts a 94 × 64 mm plate with 74 × 45 mm hole centers. Each PVC wheel is 4 inches in diameter, installs 5.11 inches high, and carries up to 350 pounds when correctly fastened.
The fit
74 × 45 mm bolt pattern
- Mounting plate94 × 64 mm
- Bolt-hole centers74 × 45 mm
- Mounting holes4 slotted holes, 9 mm
- Wheel diameter4 in
- Installation height5.11 in
- Load per caster350 lb
Illustration based on the product photo. Use the measurements written on this page.
Measurements
4-inch locking plate casters, 74 × 45 mm holes, 4 pack is listed for 4 in wheel · 5.11 in installed · 350 lb each. Compare every deciding measurement below with your space before ordering.
| Mounting plate | 94 × 64 mm |
|---|---|
| Bolt-hole centers | 74 × 45 mm |
| Mounting holes | 4 slotted holes, 9 mm |
| Wheel diameter | 4 in |
| Installation height | 5.11 in |
| Load per caster | 350 lb |
| Included fasteners | 16 M8 screws, nuts, flat washers and spring washers |
| Wheel width | 1.25 in |
| Axle diameter | 0.39 in |
| Maximum set load | 1400 lb |
| Pack quantity | 4 |
| Motion and brake | 360-degree swivel with A/B locking brake |
| Wheel material | Non-marking PVC |
| Not for | Stem sockets or furniture legs too narrow for the 94 × 64 mm plate |
Shipping and returns
Ships from a US warehouse in 6 to 8 days. Shipping to the United States is included.
You can return an unused item within 30 days of delivery. You pay the return postage. If the item arrives damaged, or it is a different measurement than the product page states, write to support@utiliy.com and Utiliy pays the return.
Fitment answers
How much weight does each caster support?
Up to 350 pounds per caster when mounted correctly. The four-caster set rating is 1,400 pounds with an evenly distributed load.
How much height will the casters add?
The stated installation height is 5.11 inches.
Do all four wheels swivel and lock?
Yes. All four swivel through 360 degrees and include A/B brakes.
Are mounting bolts included?
Yes. The package includes M8 screws, nuts, flat washers, spring washers, two wrenches, and four casters.
