58 × 58 mm hole centers
$34.11
2 in wheel · 3.22 in installed · 275 lb each
Ships from a US warehouse in 6 to 8 days. Shipping to the United States is included. Shipping details.

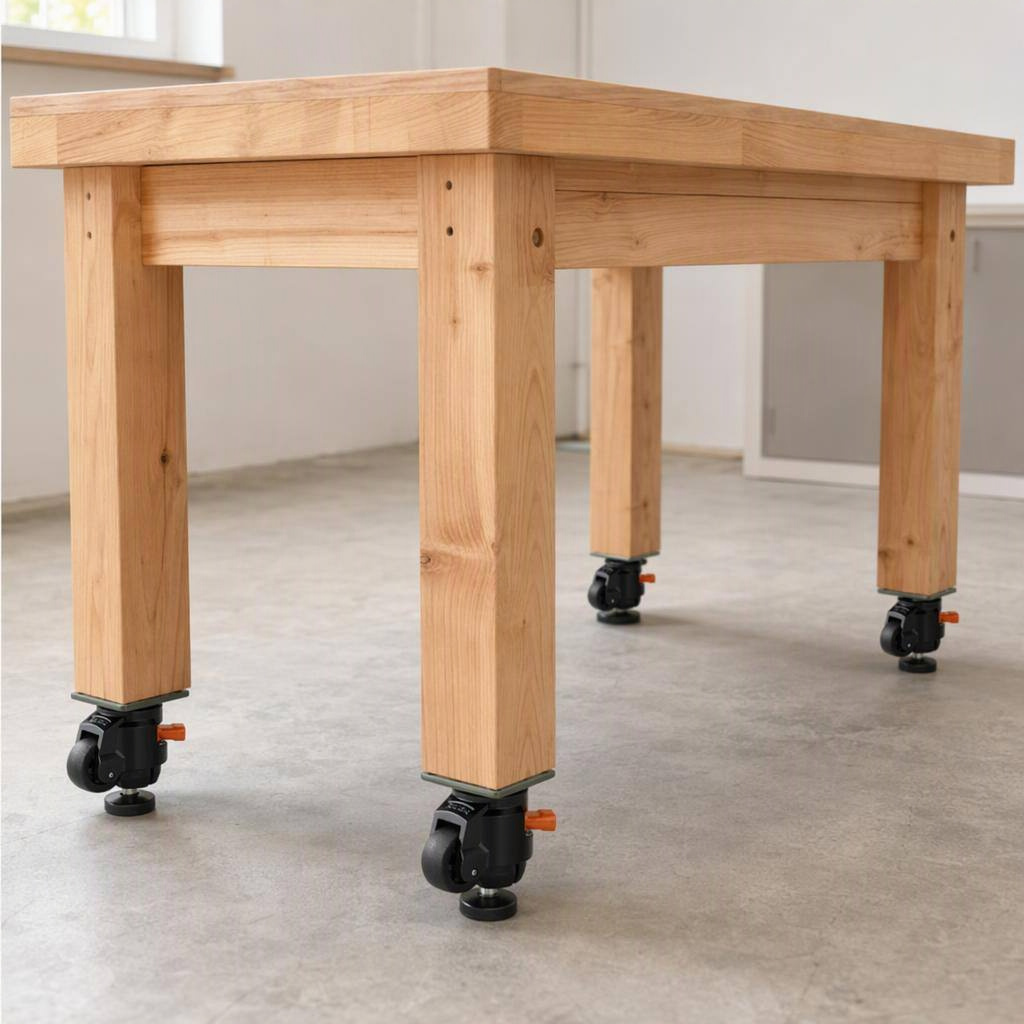

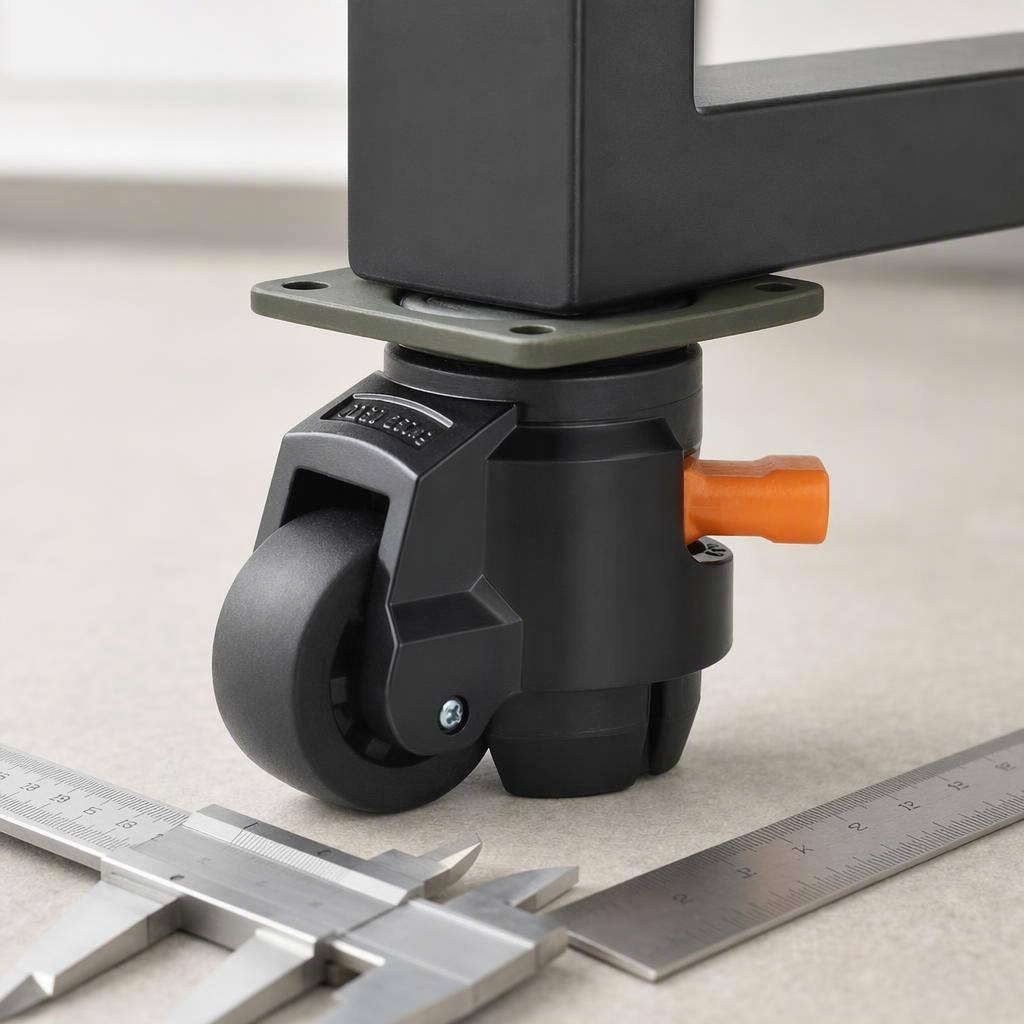

Four VEVOR GD-60FD leveling casters for a workbench, cabinet, machine base, or heavy furniture frame with a 73 × 73 mm mounting area and 58 × 58 mm bolt-hole centers. Each 2-inch caster is rated for 275 pounds, installs 3.22 inches high, swivels for movement, and lowers onto a vibration-damping leveling foot for stationary support.
The measurement
58 × 58 mm hole centers
2 in wheel · 3.22 in installed · 275 lb each
The fit
Illustration based on the product photo. Use the measurements written on this page.
2-inch leveling casters, 58 × 58 mm plate, 4 pack is listed for 2 in wheel · 3.22 in installed · 275 lb each. Compare every deciding measurement below with your space before ordering.
| Mounting plate | 73 × 73 mm |
|---|---|
| Bolt-hole centers | 58 × 58 mm |
| Mounting-hole diameter | 7 or 8.5 mm |
| Wheel diameter | 2 in |
| Installation height | 3.22 in |
| Leveling travel | 0.39 in |
| Load per caster | 275 lb |
| Wheel width | 0.98 in |
| Maximum set load | 1100 lb |
| Pack quantity | 4 |
| Wheel material | Nylon |
| Leveling mechanism | Hand-adjusted retractable foot with vibration-damping pad |
| Not for | Stem sockets, office-chair bases, or mounting surfaces smaller than the stated plate |
Ships from a US warehouse in 6 to 8 days. Shipping to the United States is included.
You can return an unused item within 30 days of delivery. You pay the return postage. If the item arrives damaged, or it is a different measurement than the product page states, write to support@utiliy.com and Utiliy pays the return.
Only if the mounting surface accepts a 73 × 73 mm plate with hole centers measuring 58 × 58 mm. Measure center to center before ordering.
No. Each caster is rated for 275 pounds; 1,100 pounds is the maximum evenly distributed rating for all four.
The stated installation height is 3.22 inches.
Move the furniture on the swivel wheels, then use the handles to lower the feet and level the frame over a range of about 0.39 inch.
No. They require a flat mounting surface and four fasteners through each square plate.
Utiliy transcribes published maker or supplier specifications into consistent units and does not fill in measurements that were not supplied.
