DP male → Mini DisplayPort female
$14.99
6 in · 4.7 mm OD · not for Thunderbolt displays
Ships from a US warehouse in 2 days. Shipping to the United States is included. Shipping details.
One passive StarTech.com DP2MDPMF6IN adapter cable for connecting a standard DisplayPort source to a Mini DisplayPort monitor cable or Mini DisplayPort display. It is not a Thunderbolt cable and does not work with Apple Thunderbolt Display A1407 or iMac Target Display Mode. Because the maker's datasheet conflicts on maximum resolution, this page conservatively states 2560 by 1600 at 60 Hz rather than promising 4K.
The measurement
DP male → Mini DisplayPort female
6 in · 4.7 mm OD · not for Thunderbolt displays
The fit

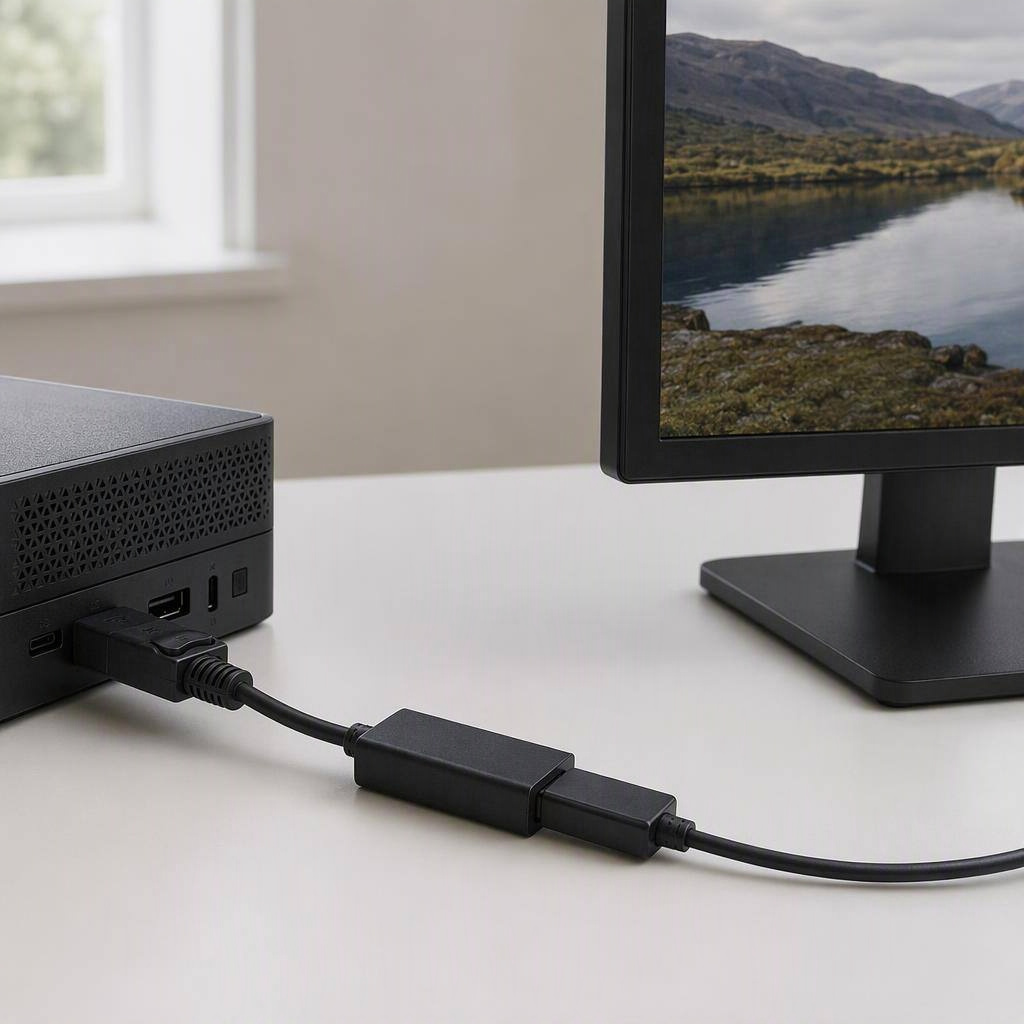

Illustration based on the product photo. Use the measurements written on this page.
DisplayPort to Mini DisplayPort adapter cable is listed for 6 in · 4.7 mm od · not for thunderbolt displays. Compare every deciding measurement below with your space before ordering.
| Source connector | Standard DisplayPort male, latching |
|---|---|
| Display connector | Mini DisplayPort female |
| Conservative maximum resolution | 2560 × 1600 at 60 Hz |
| Cable length | 6 in |
| Cable OD | 4.7 mm |
| Not compatible with | Thunderbolt displays including Apple A1407, iMac Target Display Mode, HDMI, or USB-C |
| Signal direction | Standard DisplayPort source to Mini DisplayPort monitor or cable |
| Conversion | Passive connector-format adapter |
| DisplayPort version | DisplayPort 1.2 |
| Resolution evidence note | The maker's narrative states 2560 × 1600 at 60 Hz while its feature table claims 3840 × 2400 at 60 Hz; Utiliy does not promise the conflicting higher figure |
| Maximum stated link bandwidth | 21.6 Gbps |
| Protocols | HBR2, MST, GTC and up to 8-channel audio |
| Maximum connector width | 20 mm |
| Wire gauge | 32 AWG |
Ships from a US warehouse in 2 days. Shipping to the United States is included.
You can return an unused item within 30 days of delivery. You pay the return postage. If the item arrives damaged, or it is a different measurement than the product page states, write to support@utiliy.com and Utiliy pays the return.

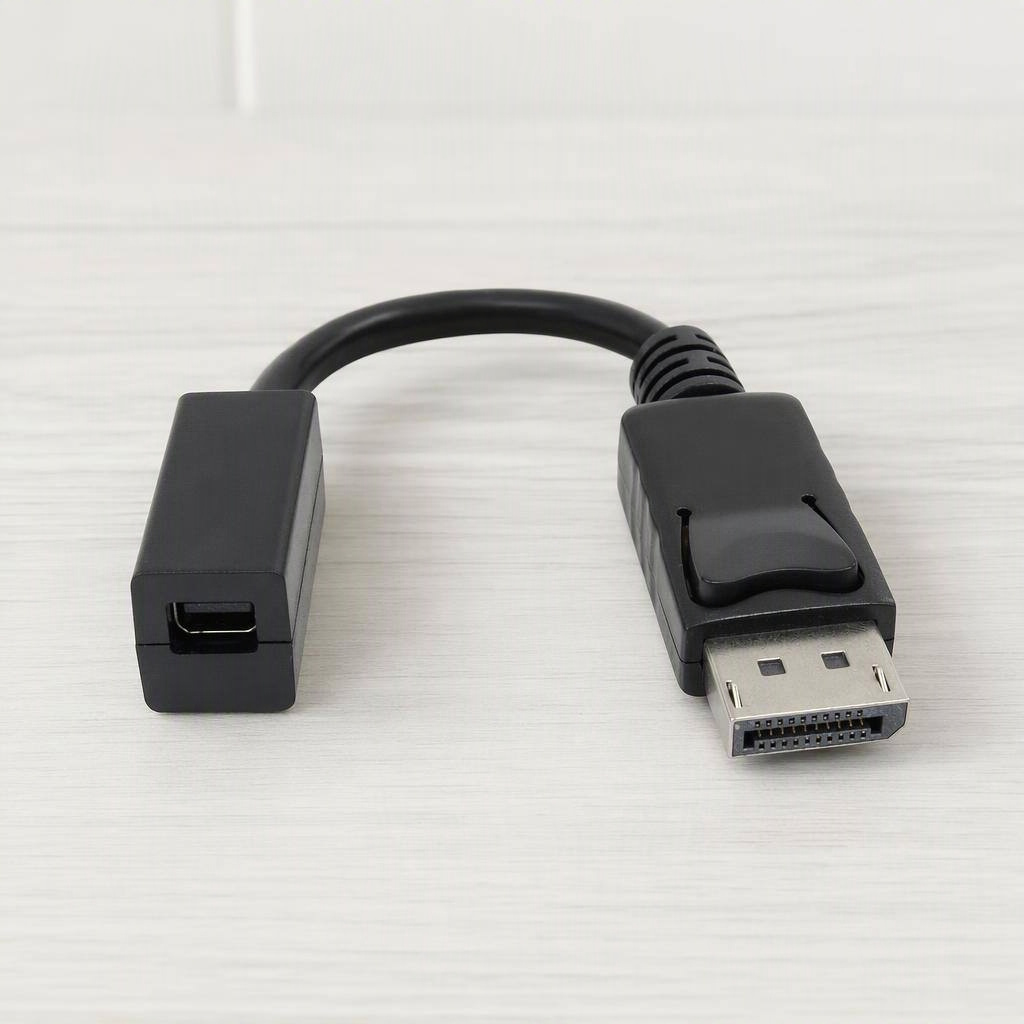

The full-size DisplayPort male plug connects to the source computer, graphics card, or compatible dock. The Mini DisplayPort female side accepts the display's Mini DisplayPort connection.
No. Mini DisplayPort and Thunderbolt 1 or 2 use a similar connector shape, but this is a DisplayPort adapter and StarTech.com excludes Thunderbolt displays such as Apple A1407.
No. The manufacturer explicitly excludes iMac Target Display Mode.
No. The manufacturer datasheet contains conflicting resolution statements. Utiliy conservatively publishes 2560 by 1600 at 60 Hz and does not promise the higher 4K figure.
Allow for a connector up to 20 millimeters wide, a 4.7 millimeter cable diameter, the six-inch cable length, and a gradual bend beyond the strain relief.
Utiliy transcribes published maker or supplier specifications into consistent units and does not fill in measurements that were not supplied.
