Upper-left LG door bin
$42.95
AAP73631702 · model-specific clips · approximately 15.4 in long
Ships from a US warehouse in 5 days. Shipping to the United States is included. Shipping details.

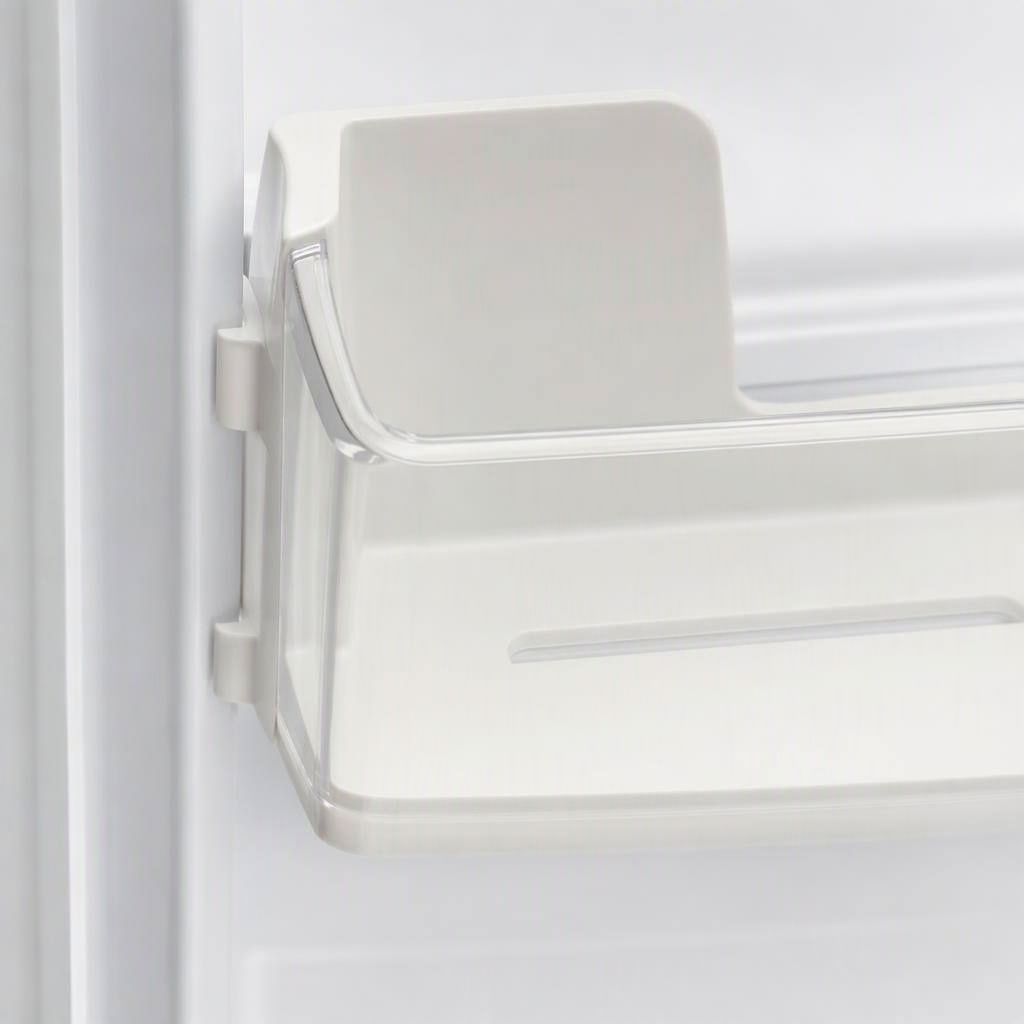

A genuine LG AAP73631702 refrigerator door bin for the upper or middle position on the left door of specific LG and Kenmore refrigerators. It is a white ABS snap-in bin with a clear front. Similar LG bins can share nearly identical dimensions while using different clip geometry, so match the appliance model and AAP73631702 part number rather than purchasing by appearance alone.
The measurement
Upper-left LG door bin
AAP73631702 · model-specific clips · approximately 15.4 in long
The fit
Illustration based on the product photo. Use the measurements written on this page.
LG AAP73631702 refrigerator door bin is listed for aap73631702 · model-specific clips · approximately 15.4 in long. Compare every deciding measurement below with your space before ordering.
| Manufacturer part number | AAP73631702 |
|---|---|
| Door position | Upper or middle position on the left refrigerator door |
| Attachment | Model-specific snap-on clips |
| LG model families | LFX28968, LFXS27566S, LMXS27626 and LMXS27676D |
| Published part dimensions | Approximately 15.4 × 6.3 × 5.65 in |
| Material | White ABS with clear front panel |
| Additional documented fits | Selected Kenmore 72493, 72495 and 73052–73065 series models |
| Not interchangeable with | AAP73631703, AAP73631602 or AAP73631802 |
Ships from a US warehouse in 5 days. Shipping to the United States is included.
You can return an unused item within 30 days of delivery. You pay the return postage. If the item arrives damaged, or it is a different measurement than the product page states, write to support@utiliy.com and Utiliy pays the return.
Find the complete refrigerator model number on its rating label and verify it against an AAP73631702 fit list. Do not rely on the LG brand or bin appearance alone.

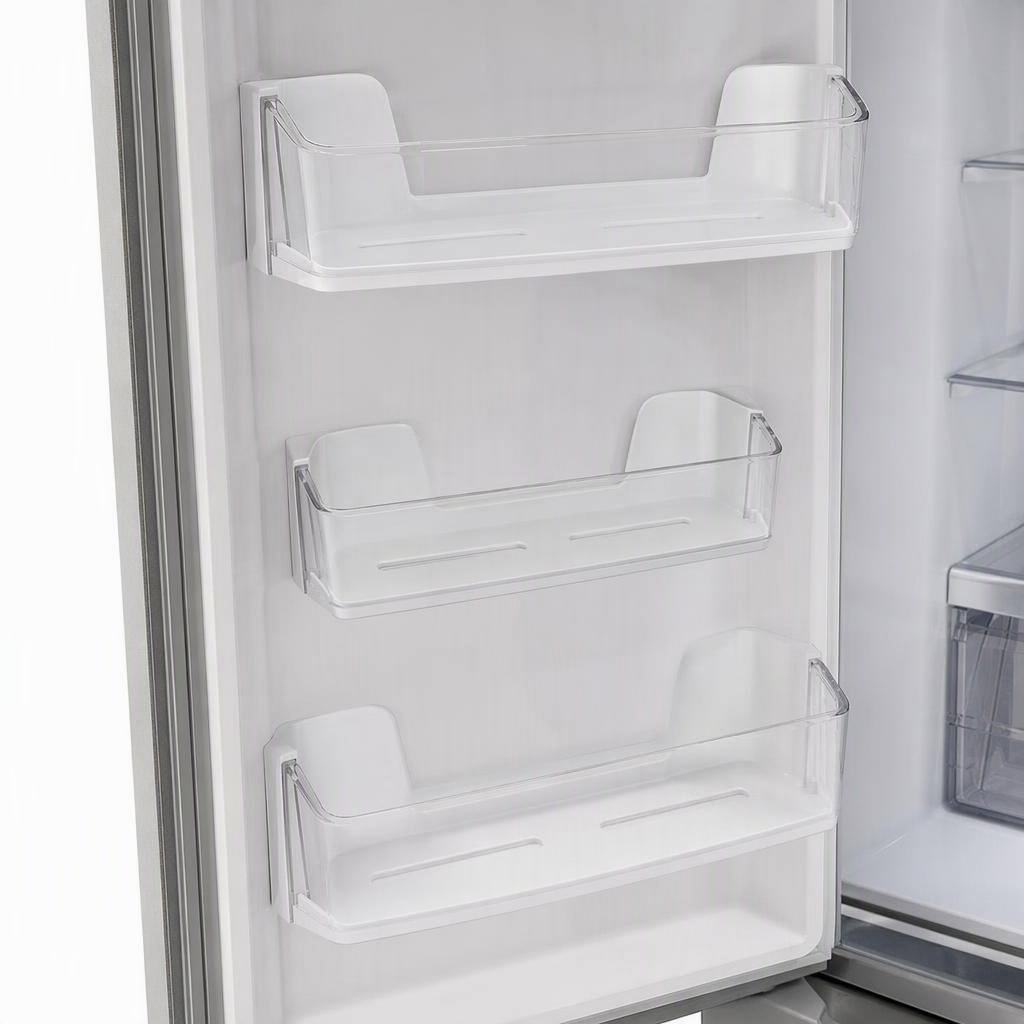

It is documented for the upper or middle position on the left refrigerator door of compatible models.
Use dimensions only as a secondary check. Similar bins can have different clip spacing and part numbers.
No. The sourced product is identified as genuine LG OEM AAP73631702.
Utiliy transcribes published maker or supplier specifications into consistent units and does not fill in measurements that were not supplied.
